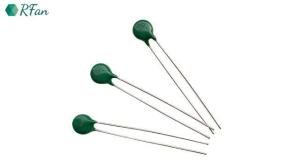

MF11 Compensation NTC Thermistor Series Negative Temperature Coefficient 5mm

Name: MF11 Compensation NTC Thermistor Series Negative Temperature Coefficient 5mm
Brand: RFan
Price: 0.2 USD

Brand Name : RFan

Model Number : MF11

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 2000PCS

Price : 0.2-0.6

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1KKpcs/month

Delivery Time : 5-7days

Packaging Details : 1000/Bag

Cable : UL4411# 24AWG

Feature : Small Size, Strong Power

Resistance Value : 2K-200K

Thermistor : Power NTC Thermistor

Operating Temperature : -40℃~125℃

Length : 5mm

Thermal Time : 55/70/90sec

Ntc Thermistor : MF74 25A NTC Negative Temperature

Transport Package : Carton Packing

Type : Chip NTC Thermistor

Contact Now

MF11 Compensation NTCThermistor Series Negative Temperature Coefficient NTC Thermistor

MF11 Compensation NTC Thermistor Series Negative Temperature Coefficient 5mm

MF11 Compensation NTCThermistor series

Applications:

Common-precision temperature measurement,temperature compensationin measuring equipments and electronic circuit

Dimensions (mm)

MF11 Compensation NTC Thermistor Series Negative Temperature Coefficient 5mm

Main Techno-Parameter

参数Parameter	数值Value
标称阻值及允差Rated resistance and tolerance	见下表See following table
B值及允差 B yalue and tolerance	见下表Soo following tablo
时间常数 Time constant	约30S
耗散系数 Thermaldissipation coefficient	约4.5mW/℃
额定功率 Rated Power	450mW
使用温度范围Temperature Range	-30-+125

The table of resistance and BValue

型号 Part No

25℃时额定零功率电阻值

Rated zoro-powor rosistance at 25℃

B值(25/50℃)

B value(25/50℃)

阻值范围(Q)

Resistance range(Q)

允许偏差(%)

Allowable Tolerance(%)

标称值(K)

Rated Value(K)

允许偏差(4)

Allowable Tolerance(%)

MF11

5-7

8-24

25-119

120-359

360-1400

1500-5900

6000-12000

13000-17000

18000-44000

45000-79000

80000-144000

145000-199000

200000-299000

300000-500000

±5 ±10

±15 ±20

2600

2800

3000

3200

3600

3950

4050

4150

4250

4300

4400

4500

4600

4750

±10
